CPU

Supports the third generation of Loongson 3A5000 4-core 8-thread processor, 2.0GHz

Large capacity Level 3 cache (64KB/256KB/16MB)

RAM

One memory slot for supporting the DDR43200 memory rate

Expandable up to 16GB memory, supports only SODIMM

Storage

support 1 x M.2 2280 NVMe SSD (PCIE3.0 x 4 )

Display

VGA+ HDMI Dual display interface，Bridge chip built-in integrated GPU, 1Gb video memory, maximum resolution 1920x1080

Wireless

Support dual-band wireless WiFi 5G/2.4G，support 802.11AC

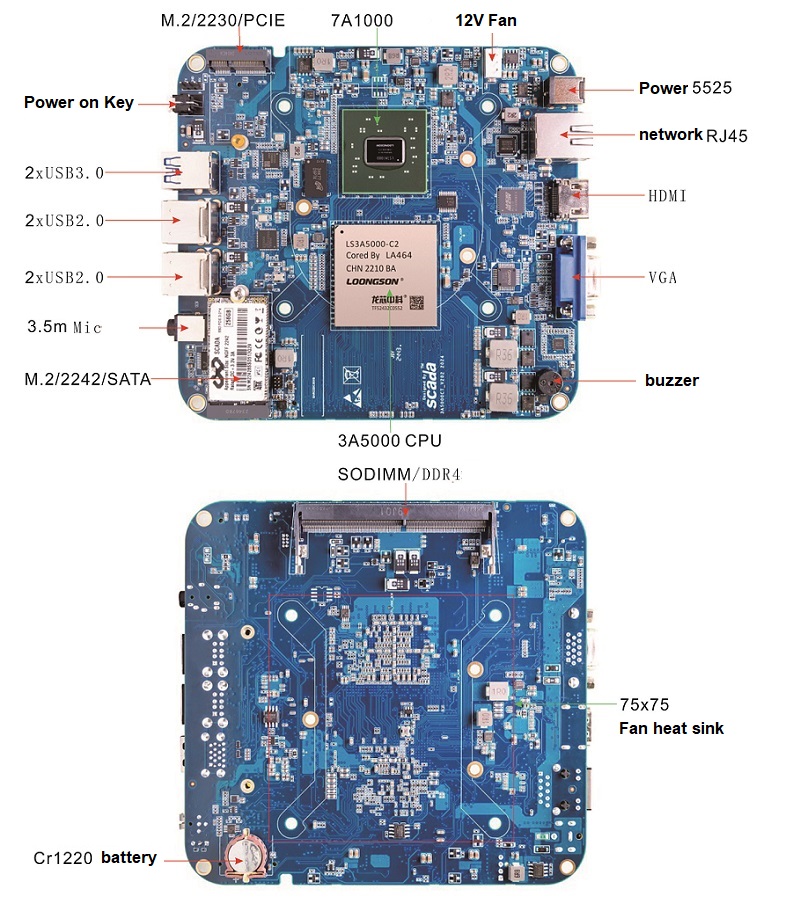

External interface

2 x USB 3.0 + 4 x USB 2.0 ，On the front panel of the chassis

1 x HDMI + 1 x VGA，on the rear panel of the chassis

1 x RJ-45 Gigabit network ,on the rear panel of the chassis

1 x 3.5mm The earphone/microphone audio port

Reserved debugging interface

1 x TTL Level UART debugging interface, 2.54mm pin

1 x LA-JTAG ，Mainly used for CPU debugging

Size

138mm x 128mm x 48.5 mm(Long x Wide x High)

Power dissipation

Maximum power consumption: No more than 30W

DC Power

DC19V 3.42A， 5.5/2.5mm

Cooling system

1 special custom cooling module

Operating system

Loongnix/UOS/Kylin OS；

Operating system support is subject to change without notice
