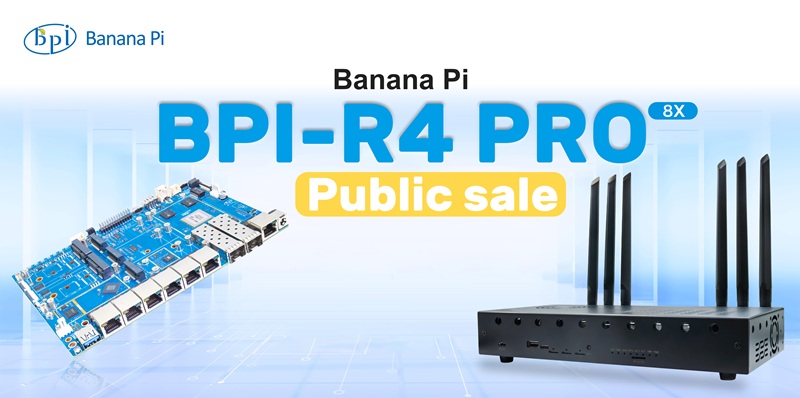

Banana Pi BPI-R4 Pro Mediatek MT7988A Wifi7 Open source Router board Public sale
Time:2025-11-17
Views:597
Banana Pi BPI-R4Pro Router board with MediaTek MT7988A(Filogic 880) Quad-core ARM Corex-A73 design ,4GB/8GB DDR4 RAM,8GB eMMC,256MB SPI-NAND flash onboard.It supports 4 x 2.5G network ports and 2 x 10G SFP+/RJ45 ports, support 4G/5G expansion。it is a update version for BPI-R4.
you can use BPI-R4 Pro for Internet service Router,Wifi7 Wireless Router,4G/5G Wireless Router,Wireless Repeater,Home security Gateway,Home Automation,Nas device,Network and communication applications
Banana Pi BPI-R4 Pro(8X)：
-
MediaTek MT7988A Quad-core Arm Corex-A73,1.8GHz processor
-
8GB DDR4
-
8GB eMMC flash
-
256MB SPI-NAND Flash
-
Micro SD card slot
-
1x 10G SFP WAN
-
1x 10G RJ45 WAN(combo with 10G SFP WAN)
-
1x 10G SFP LAN
-
1x 10G RJ45 LAN(combo with 10G SFP LAN)
-
4x 2.5G RJ45 LAN
-
1x 1G RJ45 LAN
-
1x 1G LAN(FPC Connector)
-
2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi NIC
-
2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD (PCIe signal can switch to M.2 B-KEY slot)
-
3x M.2 B-KEY slots with USB3.2 for 5G Module
-
1x USB3.2 slot
-
1x USB2.0 slot
-
1x USB TypeC Debug Console
-
2x13 PIN Header for expanding application
Note: BPI-R4 Pro will support Developer kits and open-source products. However, the packaging, shells, heat sinks, etc. will be available later. If you need to purchase the kits and products, please do so later. We will inform you in a timely manner once they are ready.
Online wiki documents: https://docs.banana-pi.org/en/BPI-R4_Pro/BananaPi_BPI-R4_Pro
