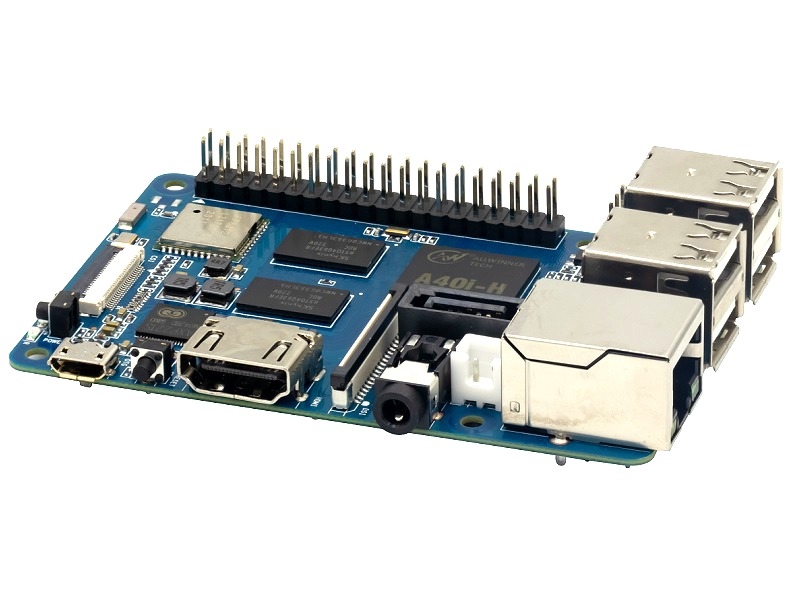

香蕉派 BPI-M2 Berry 四核单板计算机采用全志 A40i/R40/V40芯片开发。支持板载Wifi与蓝牙，支持SATA接口，可以直接接硬盘。板上有SD卡插座，可以从SD卡启动系统镜像。
Banana PI BPI-M2 Berry 兼容性强大,可以跑android系统,Debian linux,Ubuntu linux, Raspberry Pi系统和全志TinaLinux系统.
Banana PI BPI-M2 Berry硬件：全志R40/V40四核处理器，1GB LPDDR3内存，千兆以太网口，4 USB 接口 流畅运行Android5.1。Banana PI BPI-M2 Berry尺寸与树莓派 3完全一样，可以直接使用树莓派3的外壳。GPIO兼容Raspberry Pi 3并能运行rasbian 系统。
作为香蕉派家族的一员，BPI-M2 Berry是香蕉皮M1/M1+的直接升级版，支持SATA。
板子的尺寸与接口都和Raspberry Pi 3一样，所以你可以用树莓派3的外壳等配件直接用在BPI-M2 Berry

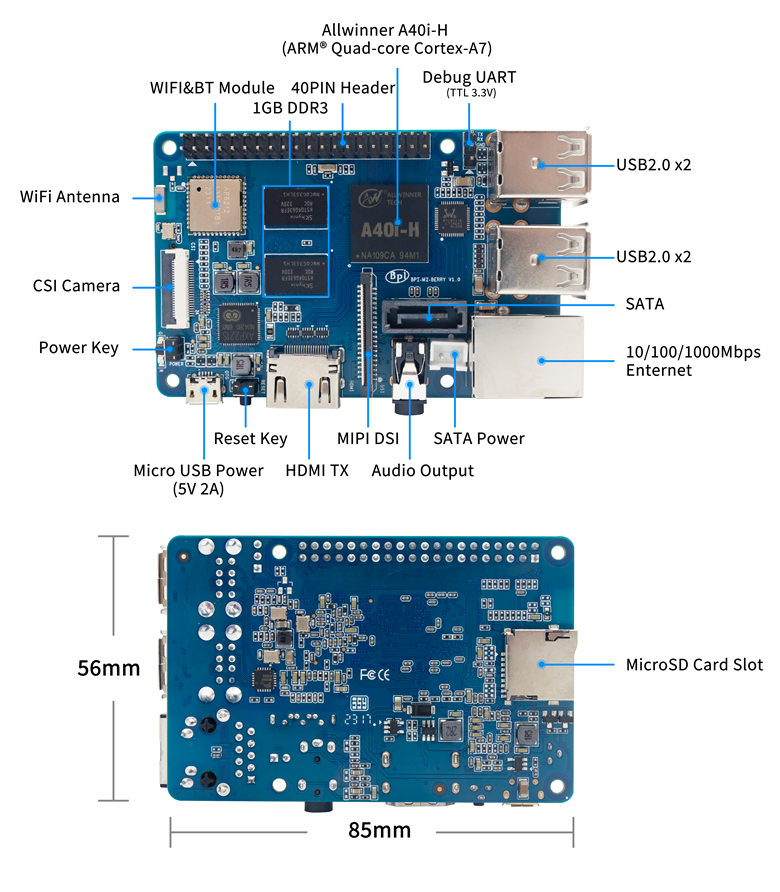

硬件接口：
硬件规格：
| HardWare Specification of Banana pi BPI-M2 Berry | |||
| Soc | Allwinner A40i/R40/V40 | ||
| CPU | quad-core cortex -A7,the most power efficient CPU core ARM‘s ever development | ||
| GPU | dual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original Xbox’s level of performance. The GPU provides OpenGL ES 2.0, hardware-accelerated OpenVG, 1080p45 H.264 high-profile encode and decode. | ||
| SDRAM | 1GB DDR3 with 733MHz(shared with GPU) | ||
| SATA | suppoort SATA interface | ||
| GPIO | 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. | ||
| On board Network | 10/100/1000Mbps Ethernet (Realtek RTL8211E/D) | ||
| Wifi Module | WiFi 802.11 b/g/n (AP 6212 module on board) | ||
| Bluetooth | BT4.0 | ||
| On board Storage | MicroSD (TF) card,No eMMC onboard | ||
| Display | 4-lane MIPI DSI display,or RGB panel or LVDS panel,TV-out on HDMI V1.4 | ||
| Video | Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 decode up to 1080P60,support video encodeing:High-deinition(HD)H.264 video encoder is up to 1080P@45fps | ||
| Audio outputs | HDMI, analog audio (via 3.5 mm TRRS jack), I2S audio (also potentially for audio input) | ||
| Camera | A CSI input connector Camera:Supports 8-bit YUV422 CMOS sensor interface,Supports CCIR656 protocol for NTSC and PAL,Supports 5M pixel camera sensor ,Supports video capture solution up to 1080p@30fps | ||
| Audio input | On board microphone | ||
| USB | 4 USB 2.0 host, 1 USB 2.0 OTG | ||
| Buttons | Reset button, Power button, U-boot button | ||
| Leds | Power status Led and RJ45 Led | ||
| IR | No onboard IR receiver | ||
| DC Power | 5V/2A with micro USB port | ||
| battery | No 3.7V lithium battery power support | ||
| Sizes | 85mmX56mm,same size as raspberry pi 3 | ||
| Weight | 40g | ||
