STEAM education

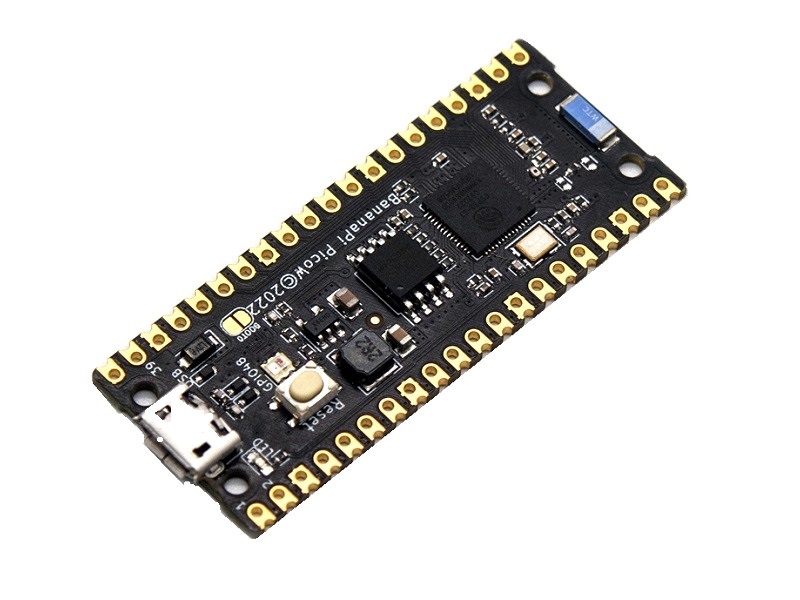

Banana Pi BPI-PicoW-S3 with ESP32-S3 design ,same size as Raspberry Pi Pico,support Arduino and microPython

  • ESP32-S3, Xtensa® 32 bit LX7
  • External PSRAM, FLASH
  • Ultra-low power 10uA
  • 2.4G WIFI, Bluetooth 5, Bluetooth mesh
  • GPIO, ADC, TOUCH, PWM, I2C, SPI, RMT, I2S, UART, LCD, CAMERA, USB, JTAG
  • 1*microUSB
  • 1*Full color LED


    Banana Pi BPI-PicoW-S3 is a series of low-powered microcontrollers designed for IoT development and Maker DIY board.It desige with ESP32-S3 chip,supports 2.4 GHz Wi-Fi and Bluetooth® LE dual-mode wireless communication, the peripheral is compatible with low-power hardware design, and the power consumption is only 10uA in deep sleep mode.In terms of programming, the BPI-PicoW-S3 supports ESP-IDF, Arduino, micropython and other methods.

    Same size as Raspberry Pi pico, And most GPIO definitions are compatible with raspberry Pi Pico

    Hardware interface:


    Hardware spec:

    SoC
    ESP32-S3, Xtensa® 32-bit LX7 dual core
    Basic frequency 240MHz MAX
    Operating temperature -40℃~+85℃
    On-chip ROM 384KB
    On-chip SRAM 320KB
    Onboard FLASH ROM 2MB
    On-chip peripheral PSRAM 8MB
    WIFI IEEE 802.11 b/g/n, 2.4Ghz band, 150Mbps
    Bluetooth Bluetooth 5, Bluetooth mesh
    GPIO BPI-PicoW-S3 has led out 27 available GPIOs
    ADC 2 × 12-bit SAR ADC supporting 18 analog channel inputs
    TOUCH Capacitive Touch Sensor 14
    SPI 4
    I2C 2. Support master or slave mode
    I2S 2, input and output of serial stereo data
    LCD 1, support 8-bit ~16-bit parallel RGB, I8080, MOTO6800 interface
    CAMERA 1, supports 8-bit ~16-bit DVP image sensor interface
    UART 3, supports asynchronous communication (RS232 and RS485) and IrDA
    PWM 8 independent channels, 14-bit precision
    MCPWM 2
    USB 1 × Full Speed ​​USB 2.0 OTG, MicroUSB Female
    USB Serial/JTAG Controller 1, USB full speed standard, CDC-ACM, JTAG
    Temperature sensor 1, the measurement range is –20 °C to 110 °C, for monitoring the internal temperature of the chip
    SD/MMC 1 × SDIO host interface, with 2 card slots, supports SD card 3.0 and 3.01, SDIO 3.0, CE-ATA 1.1, MMC 4.41, eMMC 4.5 and 4.51
    TWAI® Controller 1, compatible with ISO11898-1 (CAN specification 2.0)
    Generic DMA Controller 5 receive channels and 5 transmit channels
    RMT 4-channel transmit, 4-channel receive, shared 384 x 32-bit RAM
    Pulse Counter 4 pulse count controllers (units), each unit has 2 independent channels
    Timer 4 × 54-bit general-purpose timers, 16-bit clock prescaler, 1 × 52-bit system timer, 3 × watchdog timers
    External crystal 40Mhz
    RTC and Low Power Management Power Management Unit (PMU) + Ultra Low Power Coprocessor (ULP)
    Low power consumption current 10uA
    Working Voltage 3.3V
    Input voltage 3.3V~5.5V
    Maximum discharge current 2A@3.3V DC/DC
    Controllable full color LED 1
    Online Wiki development documents: https://wiki.banana-pi.org/BPI-PicoW-S3
