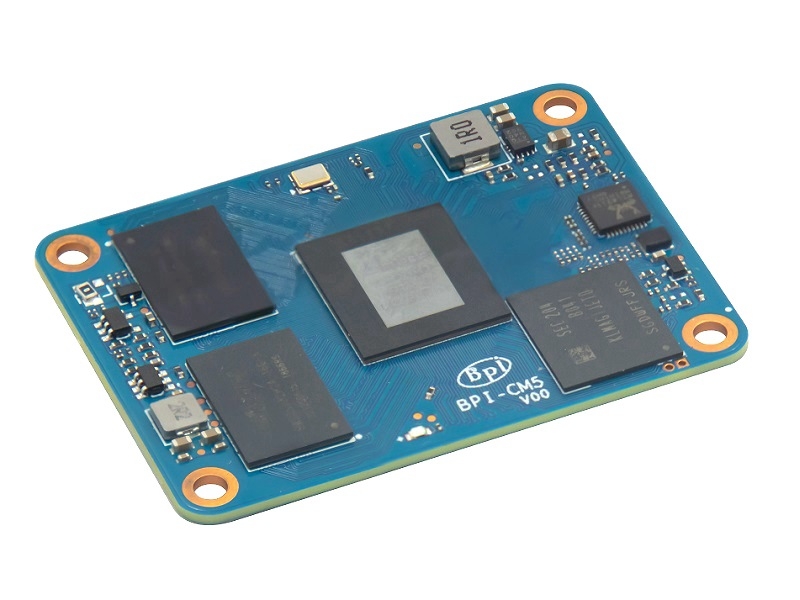

Banana Pi BPI-CM5 computer module with Amlogic A3111D2 ,Compatible with raspberry Pi CM4

Amlogic A311D2,4 Cortex-A73 and 4 Cortex-A53 SOC
Mali-G52 GPU MP8 GPU
4GB LPDDR4/LPDDR4x (Max 8G)
16G eMMC flash (Max 128G)
Board to Board connectors same as RasPi CM4
One on-board Gigabit Ethernet
One PCIe2.0 interface expansion
One USB3.0 port up to 5Gbps
One USB2.0 support USB OTG
Three HDMI2.1 receiver ports
one HDMI2.1 transmitter port with CEC
two DSI interface(Multiplexing with MIPI-DSI/eDP/LVDS)
two MIPI-CSI camera interface with 16Mp ISP
PDF
    Banana Pi BPI-CM5 is a computer module with Amlogic A311D2 quad-core Cortex-A73 and quad-core Cortex-A53 SOC, Mali-G52 GPU MP8 GPU,4GB LPDDR4/LPDDR4x (Max 8G),16G eMMC flash (Max 128G),Designed with Board to Board connectors for enhanced stability same as Raspberry Pi CM4 , which means that it should work with carrier boards designed for the Raspberry Pi CM4.

    Features:
     1. Amlogic A311D2,quad-core Cortex-A73 and quad-core Cortex-A53 SOC
     2. Mali-G52 GPU MP8 GPU
     3. 4GB LPDDR4/LPDDR4x (Max 8G)
     4. 16G eMMC flash (Max 128G)
     5. Designed with Board to Board connectors for enhanced stability same as RasPi CM4
     6. One on-board Gigabit Ethernet
     7. One PCIe2.0 interface expansion, can flexibly add related modules
     8. One USB3.0 port up to 5Gbps
     9. One USB2.0 high-speed USB/IO witch support USB OTG
     10. Three HDMI2.1 receiver ports
     11. one HDMI2.1 transmitter port with CEC
     12. two 8-lane V-by-One output can support up to 4Kx2K resolution(Multiplexing with MIPI-DSI/eDP/LVDS)
     13. two 4-lane MIPI-CSI camera interface with 16Mp ISP

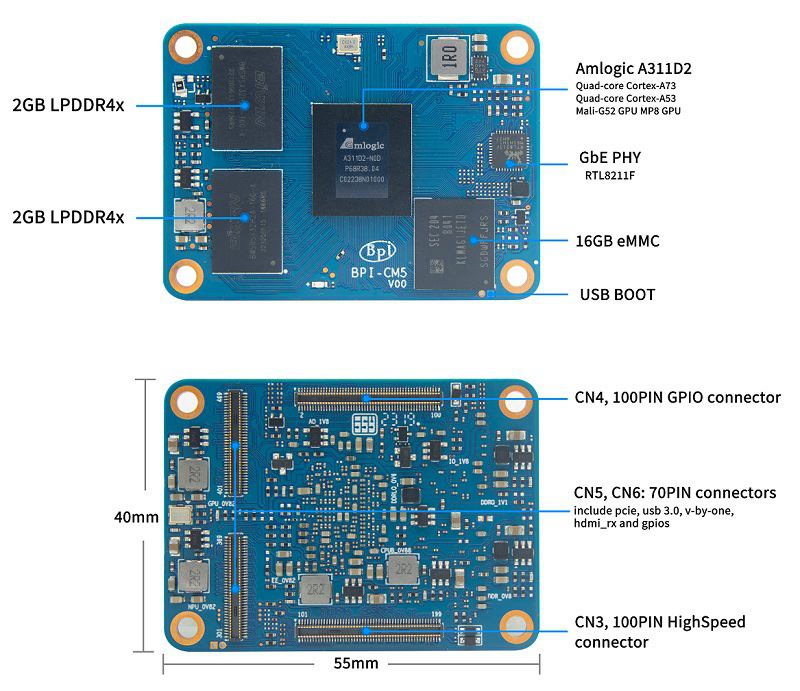

    Hardware interface:






    Banana Pi BPI-CM5 full function IO board design:



    Online wiki documents: https://wiki.banana-pi.org/Banana_Pi_BPI-CM5
