当前位置:首页 >> 社区产品 >> 开源单板计算机

开源单板计算机

香蕉派BPI-M2 Pro单板计算机采用Amlogic S905x3 芯片方案设计,板载2G RAM 和16GB eMMC

Amlogic S905X3 四核Cortex-A55 (2.0xxGHz)处理器
Mali-G31 GPU图形处理器
2GB LPDDR4内存
16GB eMMC 板载存储.
板载RT8821CU wifi&BT
2 USB 3.0 端口
1 GbE 千兆网口
HDMI 输出

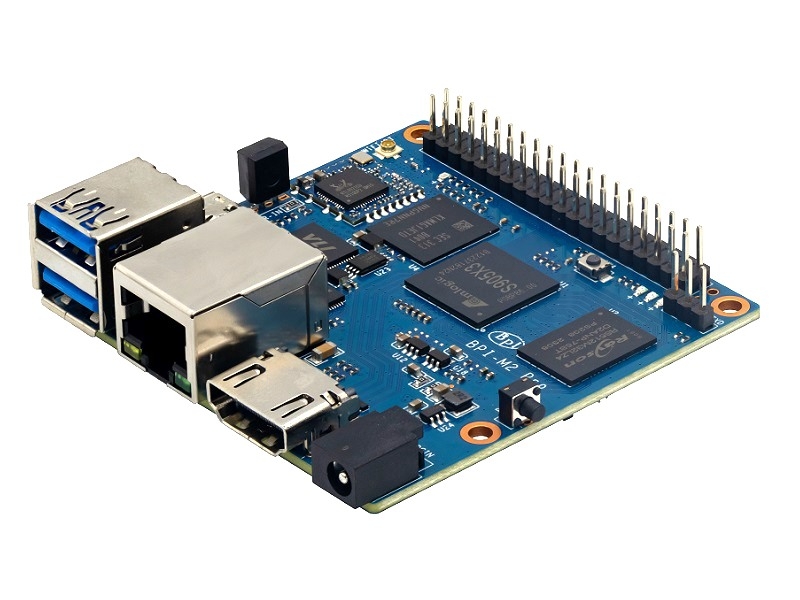

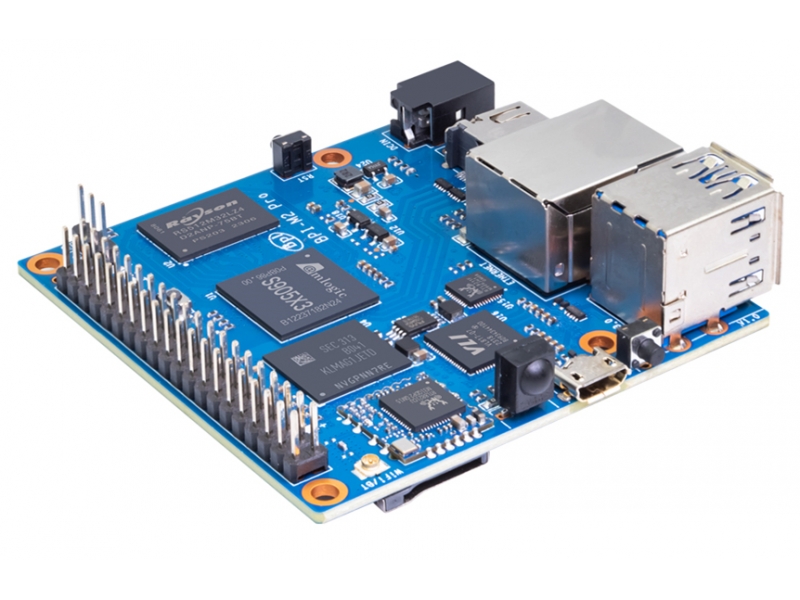

    Banana Pi BPI-M2 Pro是Banana Pi公司于2021年推出的下一代单板机。它采用Amlogic S905X3四核Cortex-A55 (2.0 XXGHz)处理器。板载2GB LPDDR4内存和16GB EMMC存储,支持2个USB 3.0接口,1个千兆网口。板载RT8821CU wifi&BT。1 HDMI输出 905X3是晶晨半导体旗下最新的8K智能家庭影音芯片,采用四颗64位ARM A55架构 CPU芯片,集成G31图形处理器,支持8K视频解码和8K视频输出,运行开放的安卓9.0系统和Linux系统。

    BPI-M2 Pro与香蕉派 BPI-M2+ 一样大小,接口也一样,所以可以使用BPI-M2+的外壳。

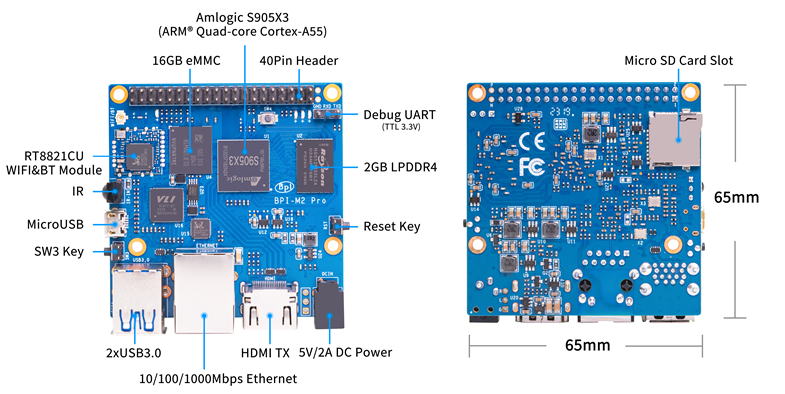

    硬件接口:
    香蕉派BPI-M2 Pro 与香蕉派 BPI-M5 一样采用Amlogic S905x3芯片方案,但在尺寸与接口上完全与香蕉派 BPI-M2+一致,用BPI-M2+做产品的客户,可以直接升级替换。

    硬件规格:

    Banana pi BPI-M2 Pro 硬件规格
    CPU Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz)
    GPU Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
    Memory 2 GB LPDDR4
    Storage MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
    Network 10/100/1000 Mbit/s Ethernet
    Wifi&BT Dual-band 802.11 b/g/n/ac WiFi 5 1×1 and Bluetooth 4.2 via Realtek RTL8821CU
    Video Output(s) 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
    Audio Output(s) 1 x HDMI digital output
    USB ports 2x USB 3.0 host ports, 1x micro USB OTG port
    GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
    Switches Reset, Power and U-boot
    LED Power Status and Activity status
    Power Source 5 volt @3A via DC port
    Size & Weight 65mm×65mm, 58g
    OS Android and Linux
    BPI-M2 Pro ,BPI-M5 , Odroid C4 , 树莓派4 规格比较表
    BPI-M2 Pro VS BPI-M5 VS Odroid C4 VS RPI 4
    香蕉派 BPI-M2 Pro 香蕉派 BPI-M5 Odroid C4 树莓派 4
    Processor Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz Amlogic S905X3 Quad-Core Cortex-A55 ARMv8.2-A 64-bit 1.5GHz Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
    GPU Mali-G31 MP2 GPU Mali-G31 MP2 GPU Mali-G31 MP2 GPU Broadcom VideoCore VI
    RAM 2GB LPDDR4 4GB LPDDR4 DDR4 4GiB with 32-bit bus width 2GB, 4GB or 8GB LPDDR4-3200 SDRAM
    Storage micro SD card slot & 16GB eMMC flash on board micro SD card slot & 16GB eMMC flash on board micro SD card slot , eMMC connector for option micro SD card slot, non EMMC
    Network 1 GbE ,WiFi&BT5.0 onbard GbE ,Optional WiFi USB dongle GbE GbE, 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, BT 5.0, BLE
    Video Output 1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID) 1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID) 1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID) 2 × micro-HDMI 2.0
    Audio Output 1 x HDMI digital output 3.5mm jack and 1 x HDMI digital output Optional SPDIF optical output 3.5 mm analogue audio-video jack
    DSI N/A N/A N/A 2-lane MIPI DSI display port
    CSI N/A N/A N/A 2-lane MIPI CSI camera port
    USB USB 3.0 x 2 1 Micro USB 2.0 USB 3.0 x 4 TYPE C USB 3.0 x 4, 1 x Micro USB 2.0 port (OTG) 2 USB 3.0 ports; 2 USB 2.0 ports;
    Power 5 volt @3A via DC power 5 volt @3A via Micro USB (TYPE C) 1 x DC power jack (Outer diameter : 5.5mm, inner diameter : 2.1mm) 5V DC via USB-C connector (minimum 3A*)
    IR Yes Yes Yes N/A
    GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). 40 x GPIO pins 40-pin GPIO header, populated
    Button Reset, user and U-boot Reset, user and U-boot N/A N/A
    LED Power Status and Activity status Power Status and Activity status Power Status and Activity status Power Status and Activity status
    Dimensions & weight 65mm x 65mm,58g 85mm x 56mm, 48g 85mm x 56mm 59g 88 mm × 58 mm, 46 g
    System Support Linux & Android Linux & Android Linux & Android Linux & Android

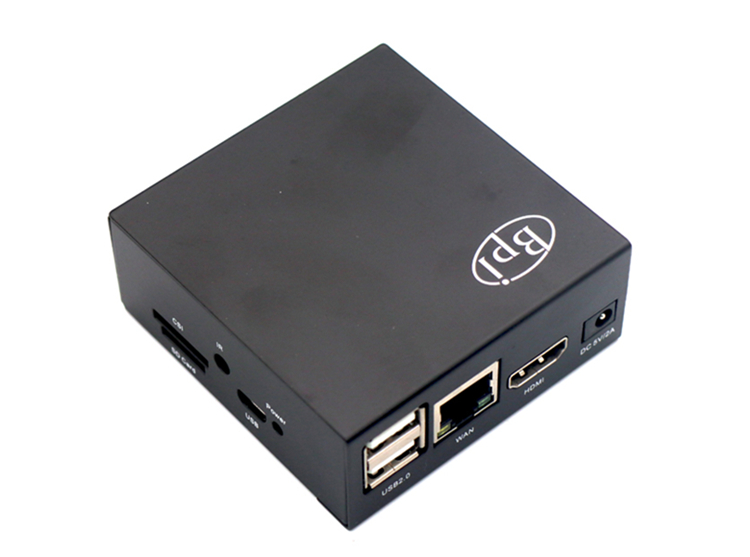

    BPI-M2 Pro 外壳设计:

    在线开发文档:https://docs.banana-pi.org/en/BPI-M2_Pro/BananaPi_BPI-M2_Pro
