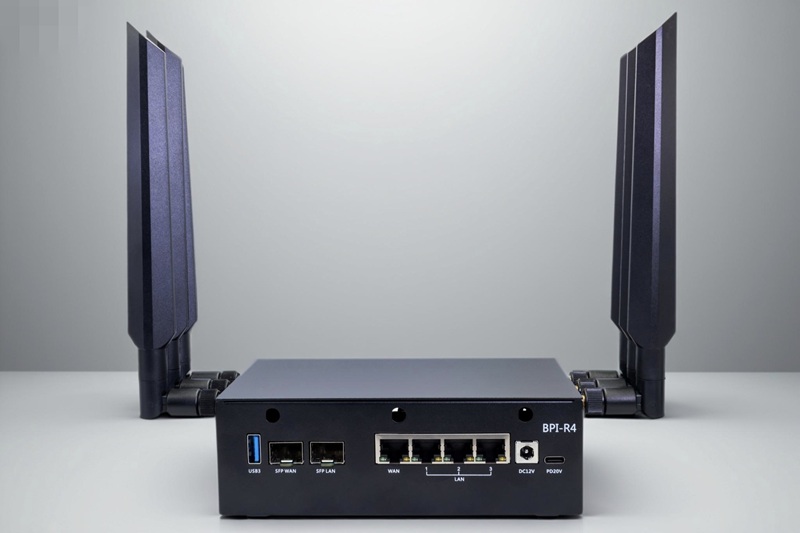

Banana Pi BPI-R4 Router board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 design ,4GB DDR4 RAM,8GB eMMC,128MB SPI-NAND flash onboard, also have 2x 10Gbe SFP, 4x Gbe network port,with USB3.2 port,M.2 support 4G/5G/NVME SSD.2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card). It is a very high performance open source router development board.

MediaTek MT7988(Filogic 880)：

Mediatek Filogic 880. the 36Gbps Wi-Fi 7 access point/router/gateway platform delivers the fastest and most reliable connection experience

The MediaTek MT7988A is a world-Leading network processing platform for high-performance and reliable networking experiences,both in wired and wireless applications. The MT7988A comprises a rich connection interface sets include 4 Gigabit Ethernet ports. 2 USXGMII 10G interface. 4 PCIe Interfaces,and 2 USB 3.2 en1 Ports

the MT7988A further enables seamless Wi-Fi 7 tri-band,2.4 GHz.5 GHz and 6 GHz,connectivity,with its Wi-Fi 7 companion chip that features 320-MHz bandwidth,4096-QAM ,MLO,MRU,and AFC.

To answer the need of fast-evolving tunneling applications,the MT7988A comes with MediaTek Tunnel offload processor System(TOPS),which facilitates the processing of a wide range of tunneling protocols.The MT7988A optimizes networking performance with exquistitely tuned ISA of MediaTek TOPS,and is dedicated to lifting networking offloading performance to premium level.

Application direction：

• . Internet service Router
• . Wifi 7 Wireless Router
• . 4G/5G Wireless Router
• . Wireless Repeater
• . Home security Gateway
• . Home Automation
• . Nas device
• . Network and communication applications

Hardware Interface：

HardWare Specification of Banana pi BPI-R4
CPU	MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor
SDRAM	4 GB DDR4
On board Storage	MicroSD (TF) card,8GB eMMC onboard
GPIO	26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
On board Network	4 Port 10/100/1000Mbps Ethernet
SFP	2x10G SFP
mini PCIE	2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card)
M.2 interface	1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G,1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD
USB	1xUSB 3.2 slot
Buttons	Reset button,WPS botton, boot switch
Leds	Power status Led and RJ45 Led
DC Power	12V/5.2A or 19V 3.2A
Sizes	100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2
Weight	250g

Online Wifi documents: https://docs.banana-pi.org/en/BPI-R4/BananaPi_BPI-R4
